Internal Reinforced with Winch – Wire Halyard
The Independence Series from Concord American Flagpole is the perfect choice when your project calls for a commercial grade flagpole utilizing a heavy-duty Internal Halyard Winch and Wire Cable system. Offered in heights of 20′ to 80′, the reinforced welded door frame delivers exceptional strength, combining security with superior aesthetics achieved from a lockable flush mount door.
There are many features of this pole that can be upgraded if you desire (i.e. flagpole lighting, eagle toppers, additional security features, etc.). If you are interested in any of these features, please contact us and a member of our team will walk you through all of the available options.

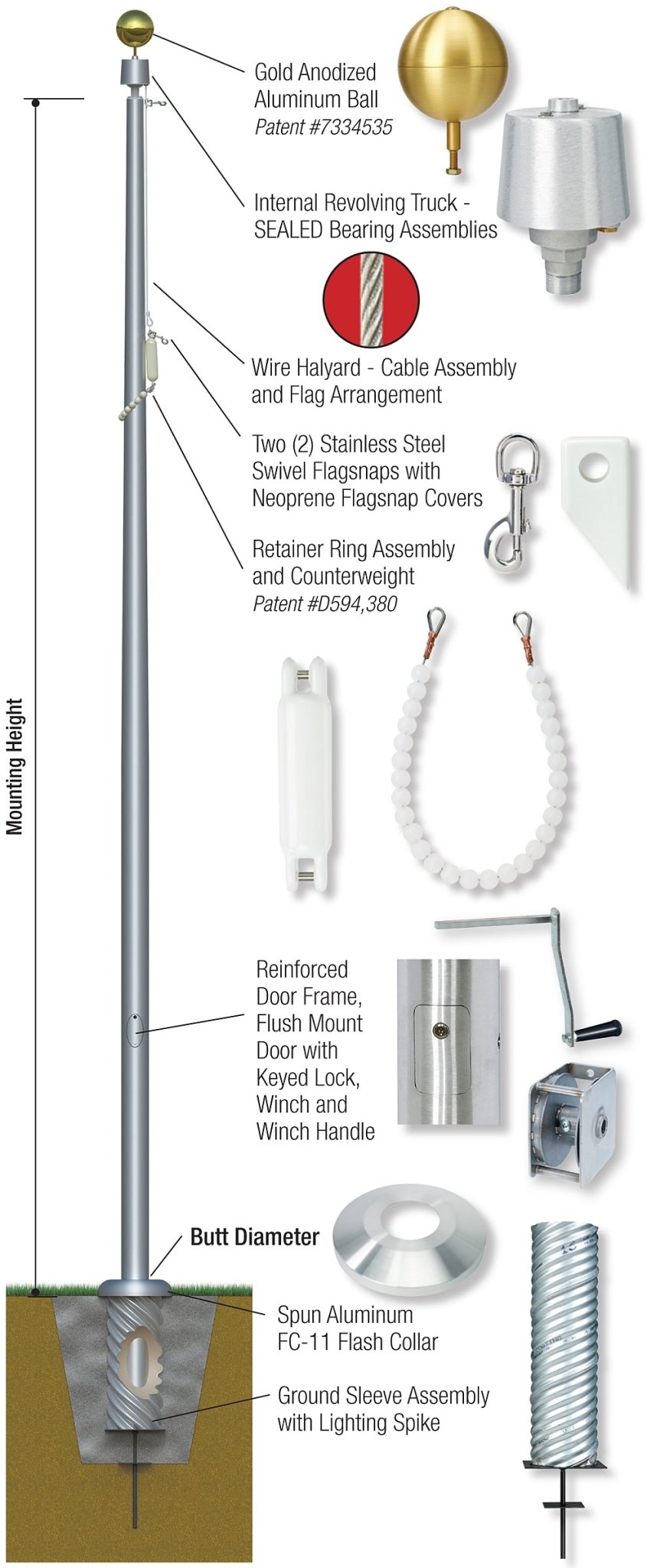

Standard Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Revolving Truck with SEALED Stainless Steel Bearing Assemblies, Aluminum Spindle, Cast Brass Exit Bushing and Removable Hood

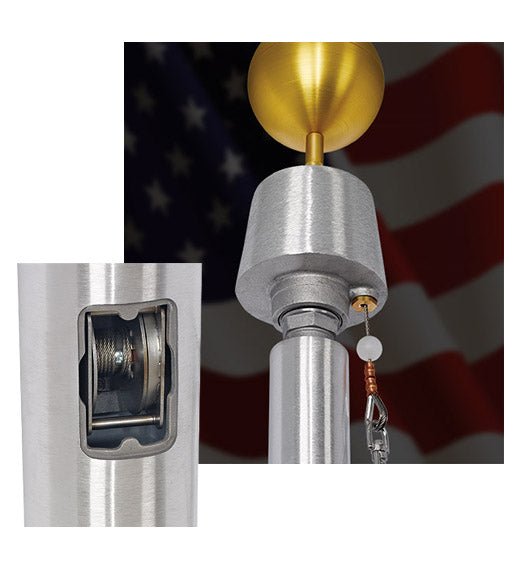

- Complete Internal Halyard Assembly
- Wire Halyard Cable Assembly
- Flag Arrangement (8′ x 12′ and Larger Flags Include Heavy-Duty Shock Spring Assembly)
- Two (2) Stainless Steel Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- Patented, Plastic Coated Counterweight
- Beaded Retainer Ring Assembly

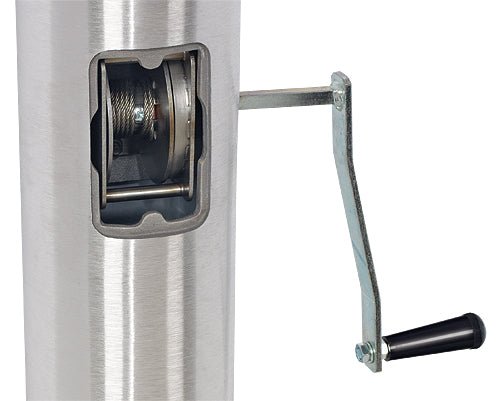

- Stainless Steel Winch Assembly with Removable Hand Crank
- Reinforced Door Frame
- Flush Mount Access Door with Lock and Keys
- Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike
Standard Upgrades – 10″ and 12″ Butt Diameters
- Heavy-Duty Dual SEALED Bearing Truck
- Two (2) Heavy-Duty Stainless Steel Flagsnaps with Covers
- Heavy-Duty Cast Aluminum FC-11 Flash Collar
- Heavy-Duty 5/8″ Ball Stem
Reinforced Raised Door Frame
Independence Flagpoles are engineered with an inset reinforced aluminum door frame welded into the precision cut door opening, providing additional strength and higher max wind speeds from each butt diameter/wall thickness combination. The efficiency of this design produces maximum strength-to-size ratios while providing a smooth, flush fitting door, making Independence IRW flagpoles the ideal choice in many applications.
WIND DURABILITY & LIFETIME WARRANTY
Every flagpole option that you buy here is rated for ~100 mph winds without a flag and at least 80 mph winds with a flag. However, we recommend that you take your flag down if you're anticipating significantly high winds. Not only to protect the flag but also the pole.
This flagpole comes with a limited lifetime warranty on the flagpole shaft which is an industry first. It's a very strong pole. However, it's always better to be safe and handle the pole (and flag) with the proper precautions for high wind.
